High Strength Brass Graphite Bronze Bearing Self Lubricating Bearing

Material : CuZn25Al6Fe3Mn3+Graphite

Application : Marine industry, Port equipments

Avalibility : Cylindrical Oiles bearing, Flanged bronze graphite bearing

Lubrication : graphite lubricated,maintentance-free

Model Number : JDB-10

Feature : High Load,low speed,

Description : High tensile brass oilless Bearing

Contact Now

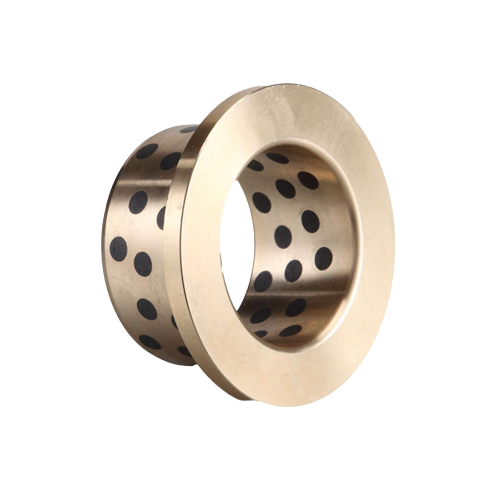

High Strength Brass Graphite Bronze Bearing Self Lubricating Bearing
JDB-10 High Strength Brass Bronze Graphite filled Self Lubricating Oilless Bearing
JDB-10 graphite plugged oilless bronze bearing is made of centrifugal casting high strength brass with graphite filled. This type of self-lubricating bearing is also called #500 oilless bearing, brass oiless bearing, C86300 copper alloy sliding bushing, SAE430B solid lubricant filled sliding bearing, 500 oilless guide bushing and graphite filled bearing, copper alloy oil free bushing.
Material
CuZn25Al6Fe3Mn3 + Graphite
PTFE or SL4 lubricant can be made based on requirement
Characteristics
  • Cost effective and higher crash strength comparing with other bronze graphite bearings
  • The solid lubricant of oiless bearing will run out to the shaft through frictional heat, forming an excellent condition for the coexistence of oil and powder lubrication, which not only protects the shaft from wear, but also makes the solid lubricant persist
  • Hardness is twice higher than other bronze graphite bushings
Availability
  • Cylindrical oiless bushing, flanged oiless bushing, thrust washer and slide plate are standard fabrication
  • Special designs and material can be made according to your design
Standard Size Download
High Strength Brass Graphite Bronze Bearing Self Lubricating Bearing High Strength Brass Graphite Bronze Bearing Self Lubricating Bearing High Strength Brass Graphite Bronze Bearing Self Lubricating Bearing
JDB Cylindrical Oiles Bearing.pdf JFB Flange Oiles Bearing.pdf JDBB Flange Oiles Bearing.pdf
Application
JDB-10 High strength bronze graphite oiless bearing is widely used in Metallurgical continuous casting machines, Train supports, Steel rolling equipment, Mining machinery, Gas turbines and etc.
Technical Data
Parameter Value
Material CuZn25Al6Fe3Mn3
Density 8
HB Hardness ≥210
Tensile Strength MPa ≥750
Yield Strength MPa ≥450
Elongation % ≥12
Thermal Expansion Coefficient 1.9x10*%/°C
Max. Operation Temp. -40~+300°C
Max. load MPa 50
Max. speed m/s (Dry) 0.5
Max. speed m/s (Lubricated) 1
Max. PV (N/mm² *m/s) (Dry) 1.65
Max. PV (N/mm² *m/s) (Lubricated) 3.25
Bronze Base Material International Code
Common Name International Code
Standard China | Germany | Japan | European | British | Italy | American
GB1176-87 | DIN | JIS | (EN 1982) | BS 1400 | JM | ASTM(UNS)
Manganese bronze ZCuZn25Al5Mn4Fe3 | CuZn25Al5 | CAC304/HBsC4 | | HTB2 | JM-18 | C86300(SAE430B)
Nickel-Aluminum Bronze CuAl10Ni5Fe5 | G-CuAl10Ni | AlBC3 | CB333G | AB2 | JM7-15 | C95500
Leaded bronze / Gun Metal ZCuSn5Pb5Zn5 | CuSn5ZnPb | BC6 /BC6C | CC491K / CB491K | LG2 | JM1-15 | C83600(ASTM B 505)
Leaded bronze / Gun Metal ZCuSn7Zn4Pb7 | G-CuSn7ZnPb,RG-7 | | CC493K | LG2 | JM-1 | C93200(SAE660)
Tin Bronze ZCuSn12 | G-CuSn12 | CAC503B | CC483K /CB483K | PB2 | JM3-15 | C90800(ASTM B 427)
High leaded tin bronze ZCuSn10Pb10 | CuSn10Pb10-C | | CC495K / CB495K | LB2 | JM-15 | C93700 / SAE64
High leaded tin bronze CuSn7Pb15 | CuSn7Pb15-C | | CC496K | AB2 | JM-4 | C93800
